If you are replacing a ceiling air filter and are unsure which direction it should face, the simplest rule is this:

The arrow on the air filter should point in the direction of airflow — toward the HVAC system or ductwork.

In most ceiling return vents, that means the arrow usually points upward into the ceiling duct. However, airflow direction can vary depending on how the ventilation system is designed, so it is important to confirm airflow before installing the filter.

Installing air purifier filters or HVAC air filters in the wrong direction may reduce filtration efficiency, restrict airflow, and increase system strain over time.

Why Air Filter Direction Matters

Air filters are designed with a specific airflow orientation. Many filters use layered materials that capture dust, pollen, odors, VOCs, and fine airborne particles more effectively when air passes through them correctly.

Incorrect installation can lead to several problems:

• Reduced filtration performance

• Higher pressure drop in the ventilation system

• Poor indoor air quality

• Increased HVAC energy consumption

• Shorter filter lifespan

• Dust bypass around the filter frame

For specialized air purifier filters such as activated carbon filters, photocatalytic filters, or formaldehyde removal filters, correct airflow direction is especially important because the filter media are engineered for staged purification.

How to Tell Which Way the Air Filter Goes

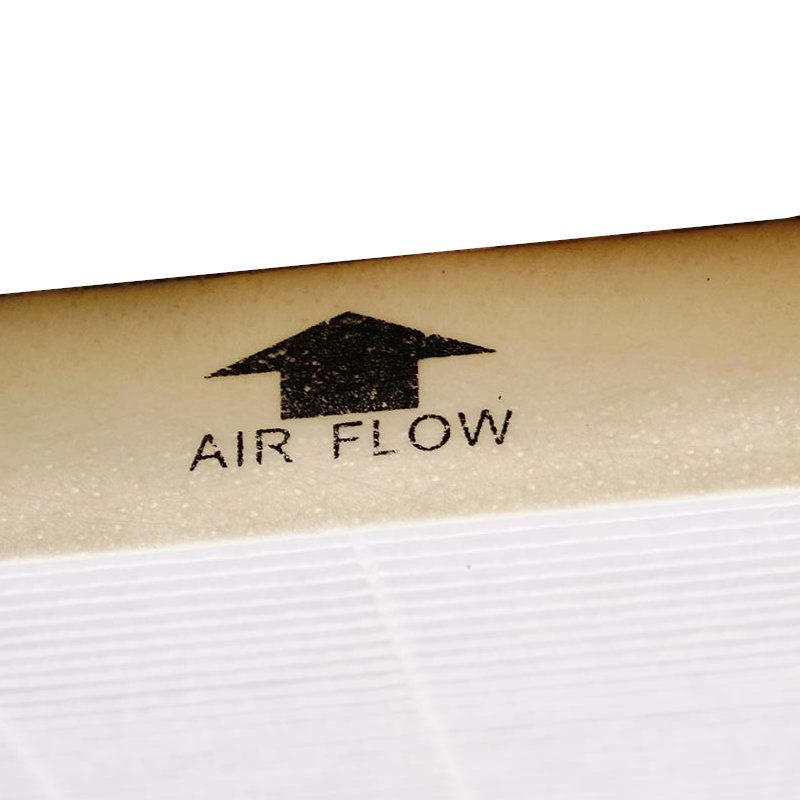

1. Look for the Airflow Arrow

Most air filters have an arrow printed on the side frame.

The arrow indicates the direction the air should move through the filter.

• For return air vents: the arrow points toward the duct or air handler

• For wall-mounted return grilles: the arrow points inward

• For ceiling vents: the arrow commonly points upward into the ceiling cavity

This is the easiest and most reliable installation method.

2. Identify the Airflow Direction

If the old filter is missing or the arrow is unclear, you can determine airflow manually.

Simple airflow test:

• Turn the HVAC system on

• Hold a thin tissue near the vent

• If the tissue is pulled toward the vent, it is a return vent

• The filter arrow should point in the same direction as the airflow

In most residential ceiling return systems, air is pulled upward into the return duct.

3. Check the Filter Construction

Some air filters have:

• A reinforced mesh side

• A denser support layer

• Activated carbon coating

• Honeycomb adsorption structure

Typically, the reinforced side faces downstream airflow to help maintain filter stability under air pressure.

However, manufacturers may use different constructions, so the airflow arrow should always take priority.

Common Ceiling Filter Installation Mistakes

Installing the Filter Backward

This is the most common mistake in both residential and commercial systems.

A backward filter may:

• Reduce dust capture efficiency

• Cause uneven airflow

• Increase strain on HVAC fans

• Shorten the service life of advanced filtration media

Using the Wrong Filter Size

Even a high-quality air purifier filter will perform poorly if gaps exist around the frame.

A loose filter allows unfiltered air to bypass the media entirely.

Before installation:

• Check filter dimensions carefully

• Confirm thickness compatibility

• Ensure the frame seals properly inside the grille

Ignoring Replacement Intervals

Dirty filters restrict airflow regardless of installation direction.

Typical replacement guidelines:

• Standard residential filters: every 1–3 months

• Activated carbon filters: based on odor or VOC load

• Commercial systems: according to operating conditions

• Industrial air filters: based on pressure monitoring or maintenance schedules

High-pollution environments may require more frequent replacement.

Ceiling Air Filters vs Air Purifier Filters

Many people confuse HVAC ceiling filters with standalone air purifier filters, but they serve different purposes.

Modern air purification systems often combine multiple technologies for better indoor air quality.

For example:

• Activated carbon handles odors and VOCs

• Photocatalytic layers decompose pollutants

• HEPA or particulate filters capture airborne particles

Does Filter Direction Matter for Activated Carbon Filters?

Yes. Although some activated carbon filters appear symmetrical, many are engineered for directional airflow.

In multi-stage filtration systems, air typically passes through:

1. Pre-filter

2. Activated carbon layer

3. Photocatalytic or specialty purification layer

4. Final particulate filter

Incorrect orientation can reduce overall purification efficiency.

This is especially important in:

• Commercial air purification systems

• Industrial ventilation systems

• Fresh air systems

• Medical or laboratory environments

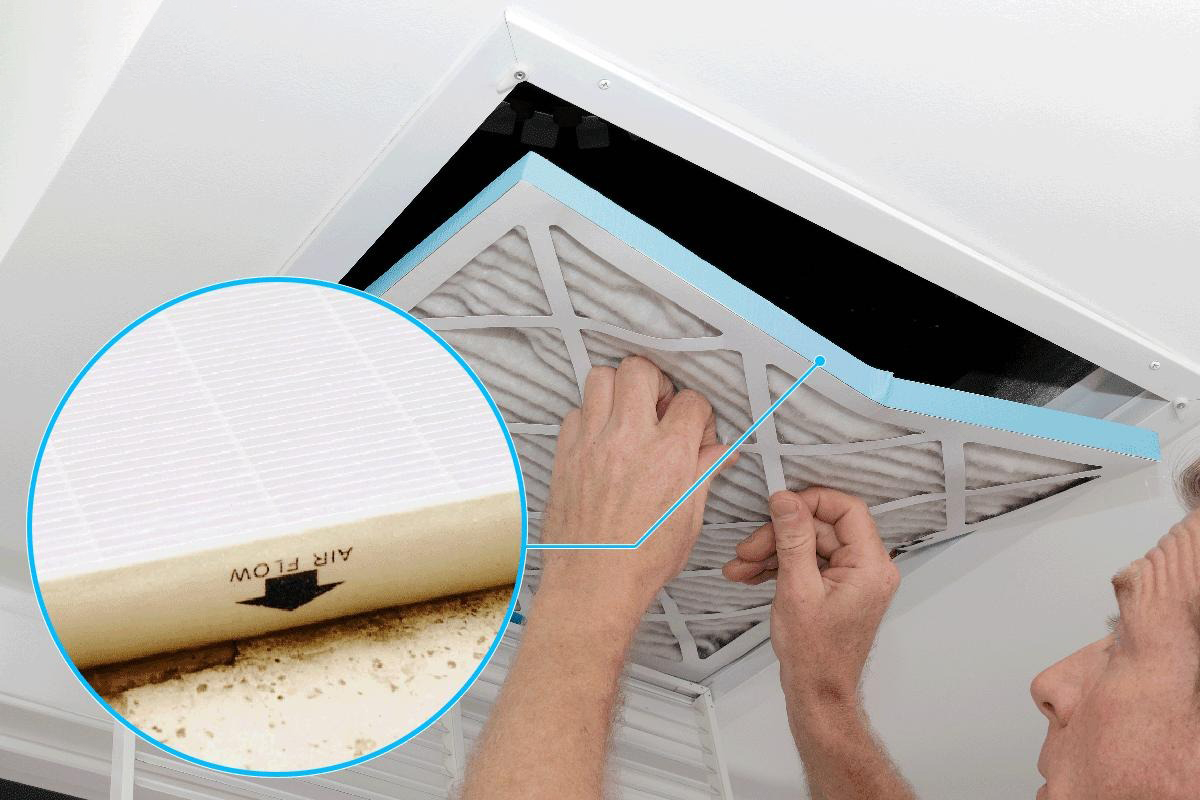

Practical Example: Ceiling Return Vent Installation

A common residential ceiling return setup works like this:

1. Room air rises toward the ceiling return grille

2. Air passes through the ceiling filter

3. The duct system carries air back to the HVAC unit

4. The system conditions and redistributes the air

In this setup:

• The airflow moves upward

• The filter arrow should point upward toward the duct

If the ceiling vent supplies air into the room instead of pulling air out, the airflow direction will be reversed. That is why checking airflow is always more accurate than assuming based on vent location alone.

How Proper Filter Installation Improves Indoor Air Quality

Correctly installed air filters help:

• Reduce airborne dust

• Minimize odors

• Lower VOC concentrations

• Improve ventilation performance

• Support healthier indoor environments

In commercial and industrial settings, advanced filtration systems may also help control:

• Ozone from office equipment

• Chemical vapors

• Manufacturing emissions

• Food processing odors

• Laboratory contaminants

High-efficiency air purifier filters with adsorption and catalytic technologies are commonly used in offices, hospitals, shopping malls, clean production facilities, and residential fresh air systems.

When to Upgrade Beyond Standard Air Filters

Standard fiberglass filters mainly capture large dust particles. They may not effectively handle:

• Formaldehyde

• VOCs

• Smoke odors

• Ozone

• Fine gaseous pollutants

If indoor air quality is a concern, many businesses and homeowners upgrade to:

• Activated carbon air filters

• VOCs removal filters

• Formaldehyde removal filters

• Photocatalytic air purifier filters

These advanced systems are especially useful after renovation projects, in densely occupied spaces, or in environments with chemical exposure.

Final Thoughts

The correct way to install ceiling air filters is straightforward:

Always point the airflow arrow in the direction the air moves through the system.

For most ceiling return vents, that means the arrow points upward into the ductwork. Taking a few seconds to verify airflow direction can improve filtration performance, protect HVAC equipment, and help maintain cleaner indoor air.

Whether you are using standard HVAC air filters or advanced air purifier filters with activated carbon and photocatalytic technology, proper installation is essential for achieving reliable air purification performance.
