ACH-HA02
BESIN
Product Description

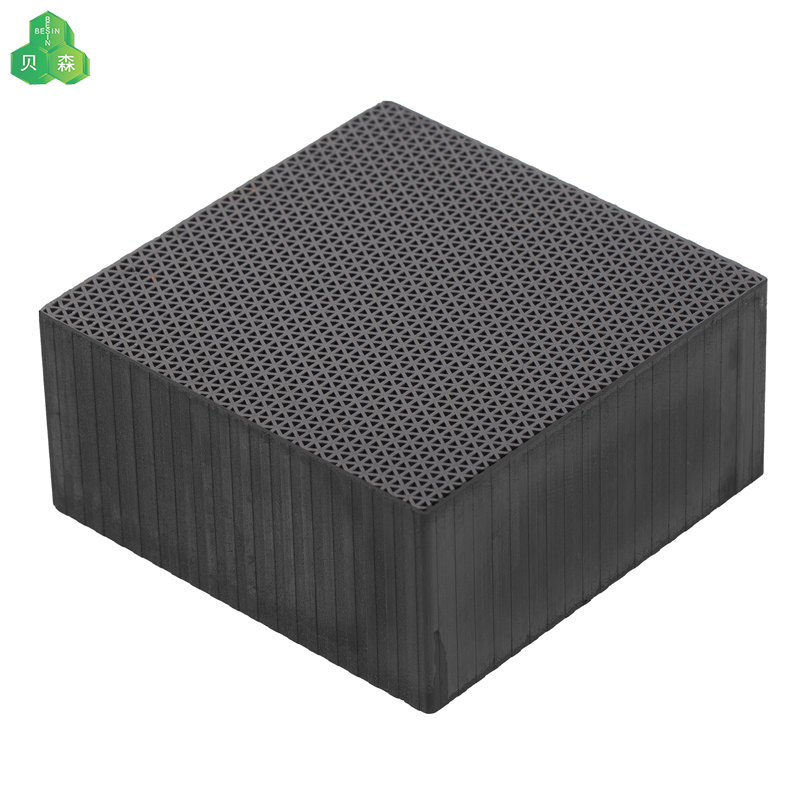

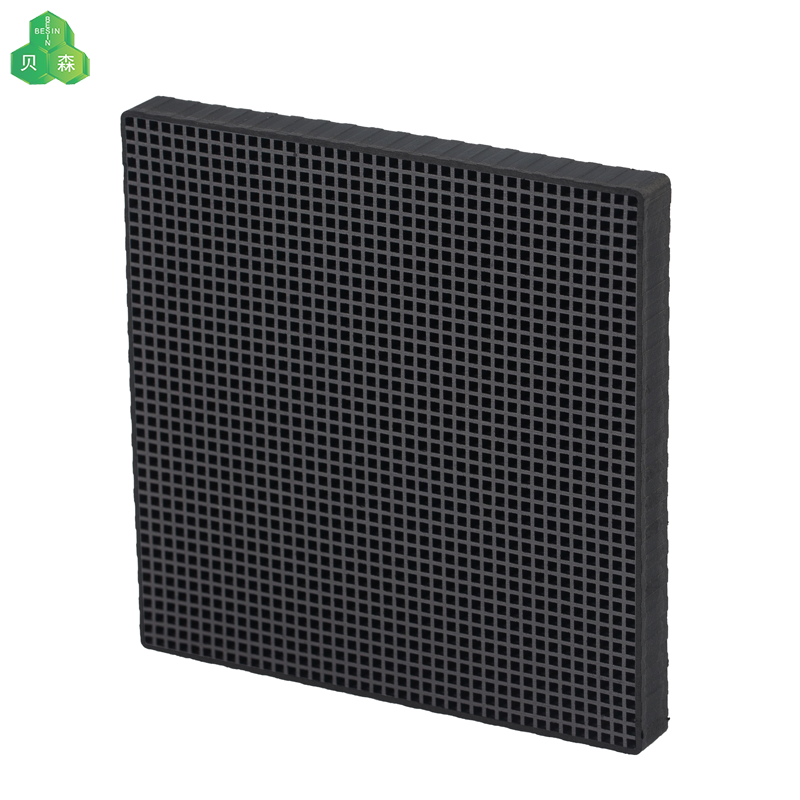

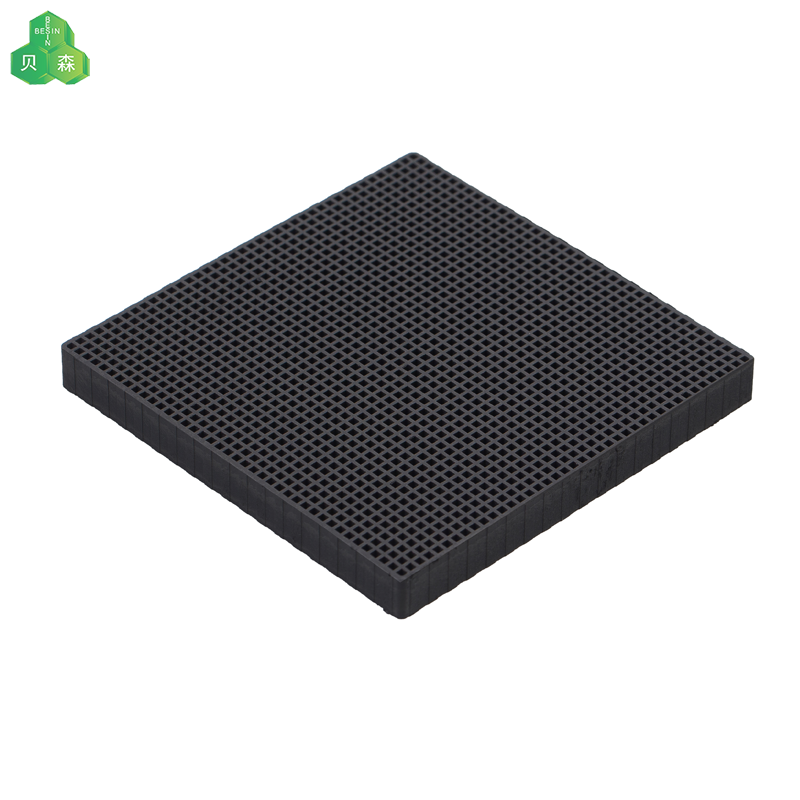

Our custom activated carbon honeycomb filter offers versatile dimensions and performance profiles, to meet the complex demands of modern HVAC systems. Its core is a custom activated carbon honeycomb, featuring specially formulated carbon and a precision-engineered structure with various cell shape（ (e.g., square, hexagonal cells) and adjustable parameters (e.g., iodine value from 400-900mg/g). This vocs removal activated carbon honeycomb filter utilizes low air resistance and large adsorption capacity, it can efficiently capture VOCs and odors, continuously purify circulating air, and safeguard indoor air quality.
The VOCs removal activated carbon honeycomb filter has outstanding core efficacy, with 92.1% removal rate certified by a third-party authoritative test, ensuring reliable purification capacity.
As a custom activated carbon honeycomb filter, its dimensions, cell shape, mesh count, iodine value, and functional coatings (e.g., for formaldehyde, sulfides) can be tailored to meet the precise purification needs of different HVAC systems.
Selected activated carbon honeycomb offers a large specific surface area, excellent adsorption performance, standard positive pressure resistance and longer service life.
Item name | Custom activated carbon honeycomb filter |
Material | Activated carbon |
Frame | Sponge or alu. profile |
Dimensions (W*D*H) | Max. 110x110x120mm (customizable) |
Iodine | 400mg/g ~ 600mg/g |
CTC | 10% ~ 60% |
Specific Surface Area | 200-900 m²/g |
Application | HVAC system, gas purification, odor adsorption, catalyst carrier |

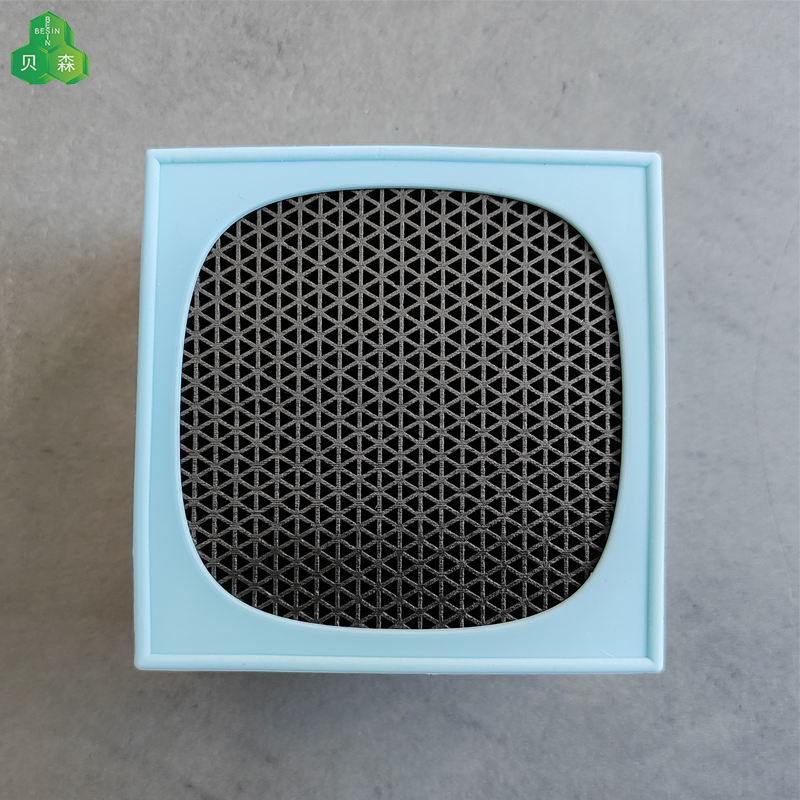

This custom VOCs removal activated carbon honeycomb filter is an ideal solution for combating volatile organic compound pollution in environments such as commercial buildings, electronics manufacturing plants, laboratories, and paint spray booths. It can be integrated into the terminals or air handling units of central air conditioning systems to effectively purify various VOCs like benzene, toluene, and formaldehyde from both fresh and recirculated air. it stably improves air purification effect with customized adaptability and 92.1% high removal rate, It ensures indoor air quality meets health and safety standards, making it particularly suitable for process environments and high-end office spaces with stringent air quality requirements. The robust activated carbon honeycomb architecture ensures a stable service life and a shelf life of up to 2 years.
